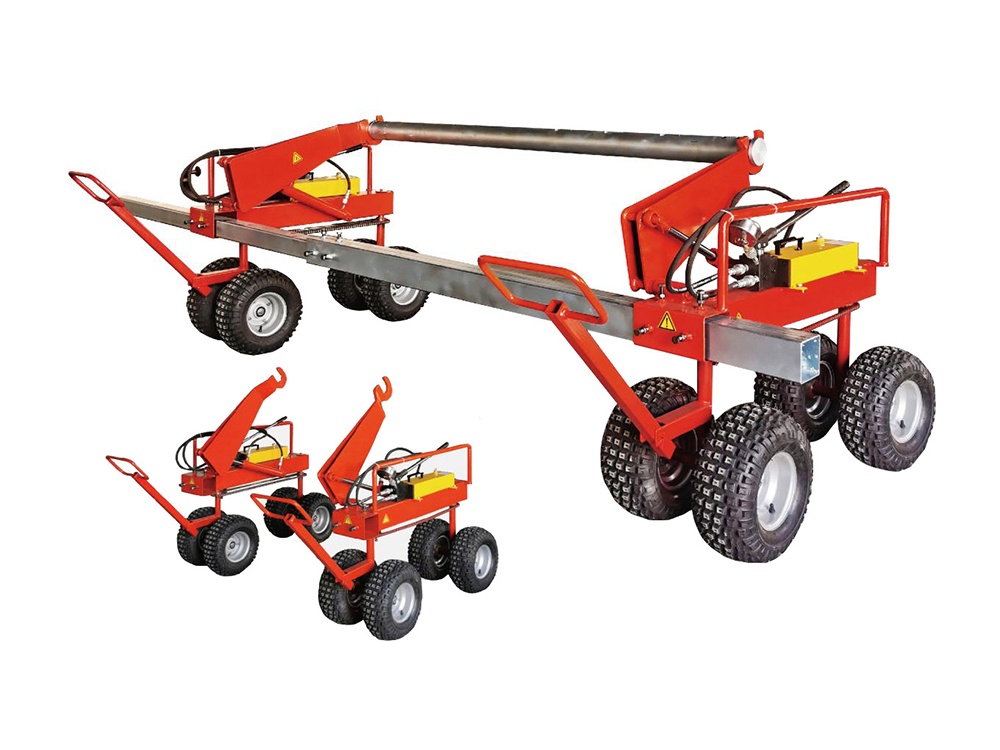

TW-2D is a professional equipment specifically developed and designed for the fast transportation and laying of artificial lawns. It is equipped with two separate and independent traction carts, each fitted with a hydraulic power lifting device that includes a manual pump and hydraulic cylinders, enabling easy lifting and transportation of turf rolls. The left and right traction carts are effectively connected through square pipes in the middle, with a maximum working width of up to 5 meters. The weight of the equipment is borne by four freely steerable pneumatic tires, which feature low ground pressure and can reduce damage to the grass. Operators can use the left and right control levers in coordination to accurately complete steering and transportation tasks; even narrow entrances or doorways can be easily passed through. This machine simplifies the transportation and laying of turf rolls, greatly reducing the workload and improving the efficiency of artificial lawn construction.
Dual Independent Traction Cart Design: The machine consists of two separate and independent traction carts, which are stably connected by middle square pipes. This structure not only ensures the overall stability of the equipment during operation but also allows for flexible adjustment of the working width (ranging from 1m to 5m) to adapt to turf rolls of different sizes and construction site requirements.
Hydraulic Power Lifting System: Each traction cart is equipped with a hydraulic power lifting device, which is composed of a manual pump and hydraulic cylinders. Through the manual pump operation, the hydraulic cylinders can drive the lifting mechanism to easily lift turf rolls, avoiding manual lifting and reducing labor intensity. The hydraulic system features stable lifting performance and strong load-bearing capacity, ensuring safe and reliable transportation of turf rolls.
Flexible Steering and Walking System: The equipment is supported by four freely steerable pneumatic tires, which bear the entire weight of the machine. The pneumatic tires have low ground pressure, which can effectively reduce the pressure on the lawn and avoid damage to the grass during transportation and laying. The left and right control levers enable coordinated operation, allowing the machine to accurately complete steering actions. Even in narrow spaces such as small entrances and doorways, it can pass through flexibly, enhancing the adaptability to complex construction sites.
Weight | 250kg |
Lifting Height | 1200mm |
Uplift Force | 2000kg |
Working Width | 1-5mm |
Outline Dimension(L*W*H) | 1300*1100*1500mm |
With its flexible operation, strong load-bearing capacity and low lawn damage rate, the TW-2D is widely suitable for the transportation and laying of artificial lawns in various scenarios. Its core applicable scenarios include:
Large Sports Venues: Transportation and laying of artificial lawns in football fields, baseball fields, and track and field venues. Its large working width and strong uplift force can meet the construction needs of large-area lawns;
Commercial and Leisure Venues: Artificial lawn laying in shopping mall atriums, hotel courtyards, resort landscapes and other commercial leisure areas. The flexible steering performance allows it to adapt to the narrow spaces in commercial venues;
Campus and Community Venues: Artificial lawn construction in school playgrounds, community activity centers and residential quarter green belts. The low ground pressure tires can protect the existing site environment from damage;
Lawn Construction Projects: Professional artificial lawn construction teams can use this machine for turf roll transportation and laying in various projects, improving construction efficiency and reducing labor costs.
Specialized Dual Functions: Specifically designed for artificial lawn transportation and laying, integrating two core functions to realize seamless connection between transportation and laying, improving construction efficiency;
Strong Load-Bearing Capacity: Equipped with a hydraulic power lifting system with an uplift force of 2000kg, which can easily lift and transport heavy turf rolls, meeting the needs of large-volume construction;
Flexible and Adjustable: The working width can be adjusted between 1m and 5m to adapt to turf rolls of different sizes; the four freely steerable tires enable flexible movement, easily passing through narrow spaces;
Lawn Protection: The pneumatic tires have low ground pressure, which can minimize damage to the grass and the existing site during operation, ensuring the integrity of the construction environment;
Labor-Saving and Efficient: Replaces manual turf transportation and laying, which is time-consuming and laborious. The coordinated operation of the left and right control levers simplifies the operation process and greatly reduces the workload;
Stable and Reliable: The dual independent traction carts are connected by square pipes, and the hydraulic lifting system has stable performance, ensuring safe and reliable operation during long-term construction.
