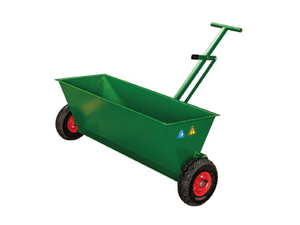

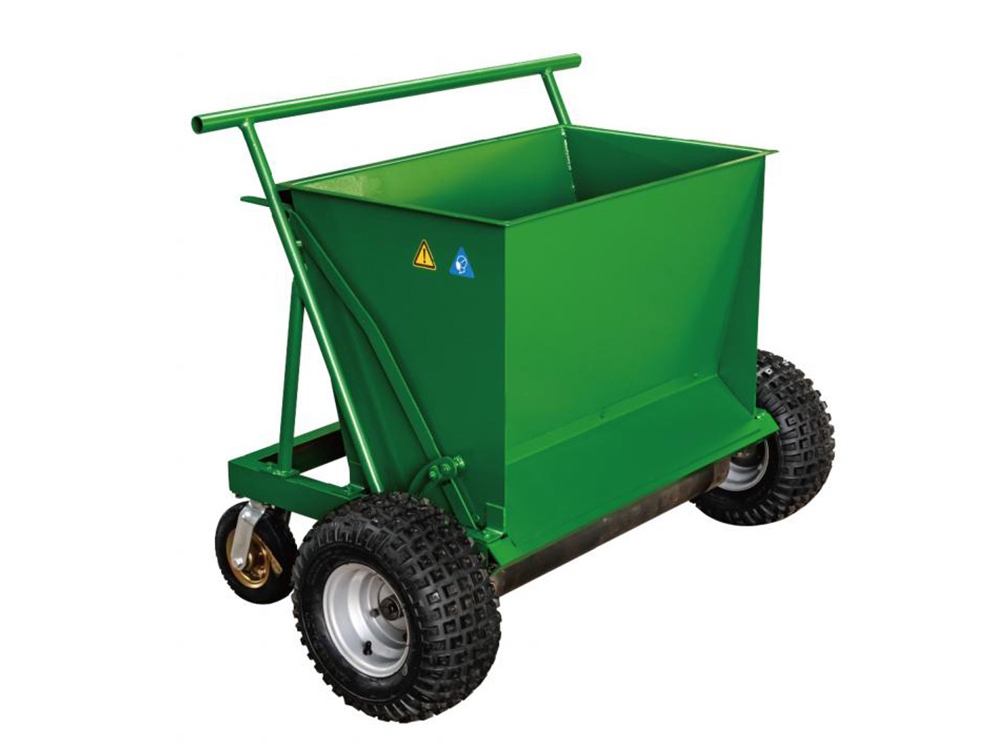

CSJ-150/L is a specialized equipment designed for sand filling operations on artificial lawns. It adopts a high-quality steel frame structure welded to the main body, featuring strong overall stability. The equipment has unique advantages in the design of its traveling system: the two front wheels are supported by inflatable wide wheels, which have low ground pressure and can effectively avoid damaging grass fibers; the rear wheels are equipped with universal wheels for flexible steering, enabling it to easily adapt to the operational needs of different venues. The bottom of the hopper adopts a one-way roller unloading structure, achieving precise control of uniform sand unloading when moving forward and no sand unloading when moving backward. With fast unloading speed and outstanding operational efficiency, it is an ideal choice for sand filling operations on small and medium-sized artificial lawns.
In terms of structural design, the equipment adopts an integrated welding process of steel frame structure and main body, which greatly improves the load-bearing capacity and overall stability of the main body and can meet the intensity requirements of long-term operations. The traveling system adopts a differentiated wheel set configuration: the two front wheels are designed as inflatable wide wheels, which reduce ground pressure through a large contact area, making it less likely to crush or damage artificial lawn grass fibers during operation; the rear wheels are equipped with universal wheels, featuring high steering flexibility, facilitating flexible movement in lawn venues, and being particularly suitable for operations in complex corner areas.
The unloading system adopts a humanized design, with a one-way roller unloading device installed at the bottom of the hopper, realizing precise linkage between the unloading action and the equipment's traveling direction. When the equipment moves forward, the one-way roller operates synchronously to achieve uniform unloading, ensuring that filling materials such as quartz sand are laid flat; when the equipment moves backward, the roller automatically stops operating, avoiding material waste or site pollution caused by incorrect unloading. This design not only simplifies the operation process but also achieves the dual goals of fast unloading and efficient operation.
| Weight | 150kg |
| Loading Capacity | 150kg |
| Sand Filling Width | 700mm |
| Movement Speed | Artificial Uniform Speed |
| Outline Dimension(L*W*H) | 1300*800*1000mm |
Applicable Scenarios
With its lightweight and flexible characteristics and precise unloading control, CSJ-150/L is particularly suitable for sand filling operations on small and medium-sized artificial lawns. Its core applicable scenarios include:
Residential Courtyard Lawns: Sand filling and maintenance of artificial lawns in private courtyards and balconies. The equipment is lightweight and easy to operate, and the inflatable wide wheels will not damage the lawn;
Small-scale Leisure Venues: Small and medium-sized artificial lawns in community leisure areas and small parks. It can flexibly handle operations in corner areas to achieve uniform sand filling;
Educational Institution Venues: Artificial lawns in small sports fields of kindergartens and primary schools. The low ground pressure design protects the lawn from damage, adapting to the maintenance needs of campus venues;
Small-scale Commercial Scenarios: Small-area commercial lawns such as shopping mall green areas and exhibition artificial lawn layouts. It can quickly complete sand filling operations and improve site finishing efficiency.
Sturdy and Durable Structure: Adopting steel frame and main body welded forming technology, it has strong load-bearing capacity and stable overall structure, adapting to long-term operation needs;
Good Lawn Protection: The front wheels are designed as inflatable wide wheels with low ground pressure, which are not easy to crush or damage grass fibers during operation, maximizing the integrity of the lawn;
Flexible and Convenient Operation: The rear wheels are equipped with universal wheels for flexible steering, facilitating operations in narrow spaces or complex corner areas and reducing operation difficulty;
Precise and Efficient Unloading: One-way roller unloading at the bottom of the hopper enables uniform unloading when moving forward and no unloading when moving backward, avoiding material waste, with fast unloading speed and high operation efficiency;
Suitable for Small and Medium-sized Venues: The equipment is lightweight with an appropriate sand filling width, especially suitable for operations on small and medium-sized artificial lawns, balancing flexibility and practicality.
