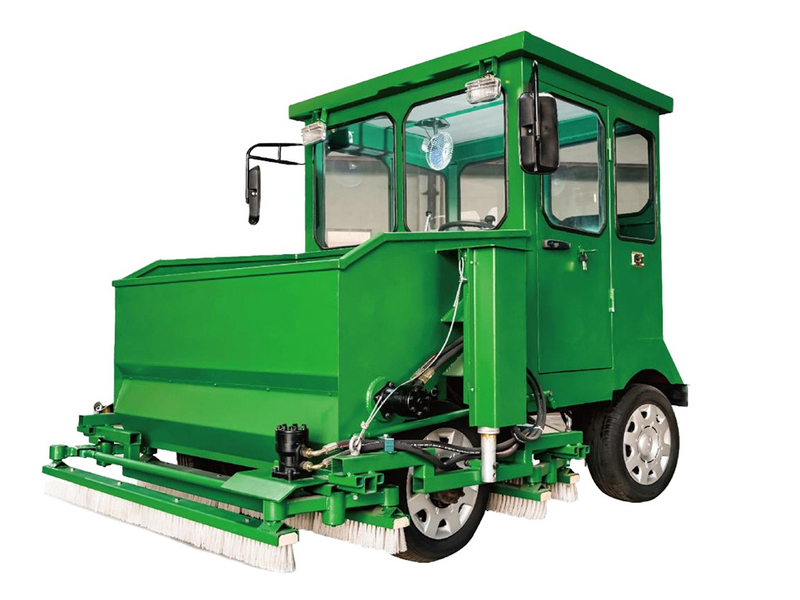

CSJ-1.2/D is a dual-purpose machine integrating sand filling and grass combing functions. Powered by a diesel engine, it boasts strong horsepower and high operating efficiency. Particularly suitable for sand filling and grass combing operations on large-area lawns, this machine is specially designed for the construction and maintenance of artificial lawns that require particle filling. It can be widely applied to various popular and commonly used artificial lawn scenarios, including general artificial lawns, football fields, baseball fields, and other similar venues.
Two sets of brushes are installed at the front and rear of the machine's hopper, and the height of the brushes is controlled by a telescopic hydraulic cylinder. During the machine's operation, the brushes are driven by hydraulic transmission to perform horizontal reciprocating motion. By adjusting the angle of the hopper, the sand discharge speed and sand filling thickness can be precisely controlled, enabling the machine to evenly fill the lawn with quartz sand and rubber particles while combing the grass blades effectively.
Weight | 1800kg |
Loading Capacity | 1000kg-1200kg |
Sand Filling Width | 1450mm |
Movement Speed | 1.9-2.2km/h |
Power | 12kw |
Outline Dimension(L*W*H) | 2800*2000*2100mm |
With its powerful performance and efficient operation capabilities, the CSJ-1.2/D is well-suited for large-area artificial lawn construction and maintenance. Its core applicable scenarios include:
Professional sports venues: Sports-type artificial lawns that require filling with quartz sand/rubber particles, such as football fields and baseball fields. It can ensure the flatness of the venue and the uprightness of grass blades, and improve sports safety;
Large-scale leisure lawns: Daily maintenance of large-area artificial lawns in parks, resorts, commercial complexes, etc., realizing the simultaneous progress of grass combing and sand layer supplement;
Campus and venue lawns: Construction and regular maintenance of artificial lawns in university sports grounds, stadiums and gymnasiums, adapting to large-scale operation needs and reducing labor costs.
Integrated dual functions: Combines sand filling and grass combing in one unit, eliminating the need for separate equipment for each task. This simplifies the operation process, reduces labor input, and significantly enhances overall work efficiency;
Strong and reliable power: Equipped with a diesel engine, it delivers robust horsepower to support long-term continuous operation on large-scale lawns, easily meeting high-intensity construction and maintenance requirements;
Precise operational control: The height of the dual-set brushes is adjustable via a telescopic hydraulic cylinder, adapting to different grass heights. Hopper angle adjustment allows for precise control of sand discharge speed and filling thickness, ensuring uniform material distribution;
Wide application range: Specifically designed for particle-filled artificial lawns, it is an ideal choice for football fields, baseball fields, large commercial leisure lawns, and other large-area artificial lawn venues.
